Side channel blower DSC/PSC

Are you looking for a specific product?
Write to us.

Contact us

This selection program is provided in cooperation with Venture Industries.

DSC/PSC mehrstufiger Seitenkanalverdichter mit Direktantrieb, geeignet für Druckmaschinen und pneumatische Anlagen.

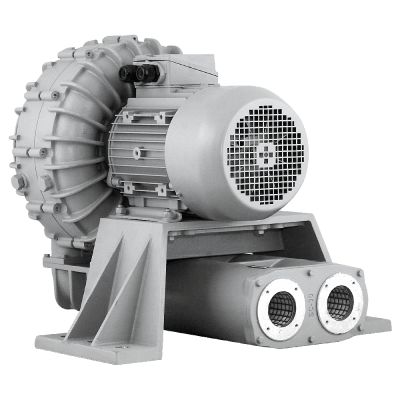

Side channel blower DSC/PSC

Application

Side channel blowers are used for the oil-free transport of non-aggressive and non-explosive gases.

Typical applications:

  • Pneumatic transport
  • Printing machines
  • Pneumatic lifts
  • Multi-stage filtration equipment with a very high dust separation efficiency
  • Industrial hoovers
  • Swimming pools
  • Aeration in biological sewage treatment plants
  • Electroplating plants
  • Fish farming
  • etc.

Construction

  • Impeller: Aluminium alloy, cast and dynamically balanced according to ISO 1940-1.
  • Casing: aluminium alloy, cast
  • Compressor suitable for horizontal or vertical mounting
  • Standard colour RAL 7042 (grey)
  • Maximum pumped medium temperature is 60 °C
  • Ambient temperature range from -20 ° C to + 40 °C

Electric motor

  • Asynchronous, single-phase 230V 50Hz (power up to 2.2 kW)
  • Asynchronous, three-phase 230V / 400V 50Hz (power up to 3 kW)
  • Asynchronous, three-phase 400V / 690V 50Hz (output from 4 kW)
  • Efficiency class IE3 (from 0.75 kW) or IE2 (below 0.75 kW)
  • Protection class IP55
  • Insulation class F
  • Three-phase motors are designed for frequency converter operation
  • Thermal protection (TP or TP and PTC) – for selected motors

Special versions

  • Special voltage
  • Single-phase motor for voltage regulation
  • Motor with different degrees of protection
  • Motor with sensors or additional cooling
  • Special seals between housing and motor
  • Maximum temperatures > 60 ° C
  • Ambient temperatures below -20°C and above + 40°C
  • Belt drive
