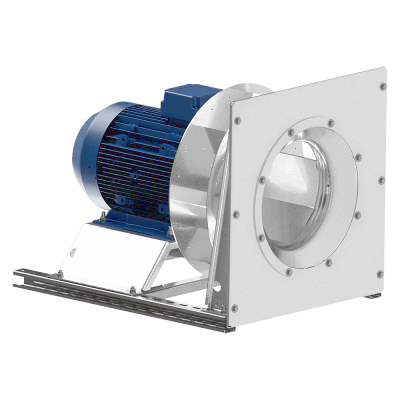

Centrifugal fan-PBM

Application

Centrifugal fan without housing for transporting clean or slightly dusty air. Typical applications: Lüftungsgeräte,

  • Ventilation units,
     drying systems,
  • air circulation systems,
  •  paint chambers.

Construction

  • Centrifugal fan with direct drive
  •  Aluminium rotor with backward curved blades, dynamically balanced according to ISO 21940-1
  •  Fan for horizontal position
  •  Aluminium fan with grey painted steel elements of the base RAL 7042
  •  Fan operating temperature range from -20 ° C to + 40 ° C
  •  Inlet funnel with 4 nipples Ø6mm for pressure measurement evenly distributed around the circumferential inlet near the rotor

Electric motor

  •  asynchronous, three-phase, 230 / 400V 50Hz or 400 / 690V 50Hz
  •  Protection class IP55
  •  insulation class F
  •  for frequency control

Special designs

  •  Painting in a colour other than standard
  •  Motor for other than standard voltage and mains frequency
  •  Motor with a different IP degree of protection
  •  Operating temperature range of the fan below -20 ° C and above + 40 ° C
