HST Hochdruck-Radialventilator für Prozessmedien bis 80°C, ideal für industrielle Anwendungen.

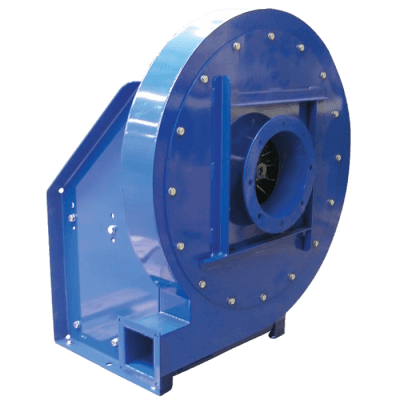

Centrifugal fan-HST

Application

Fans for the transport of process-specific media and ventilation applications. This fan type is used in the following areas, among others:

  • Sewage sludge drying
  • Industrial furnace construction
  • Thermal process technology
  • Surface technology
  • Ventilation technology
  • Environmental technology
  • Cleaning machines
  • Special machine construction
  • Power plant construction
  • Textile machinery
  • etc…

CONSTRUCTION

  • High-pressure radial fan with direct drive
  • Riveted steel sheet impeller with straight blades dynamically balanced in accordance with ISO1940-1
  • Housing made of steel sheet
  • Fan painted blue RAL 5010 (corrosivity category C3)
  • Maximum temperature of the transported medium is 80°C
  • Ambient temperature of the motor from -20°C to +40°C
  • FIgure LG270

MOTOR

  • Asynchronous, three-phase 230/400V 50Hz
  • Aasynchronous, three-phase 400/690V 50Hz,
  • IE3 efficiency class
  • Degree of protection IP55,
  • Insulation class F
  • Three-phase motors are adapted for frequency converter

Special designs

  • Optionol configuration LG/RO
  • Color other than standard
  • Painting in higher cotegory of corrosivity
  • Motor with voltage and frequency of power different than standard
  • Motor with other than standard degree of protection
  • Motor equipped with sensors or additional cooling
  • Sealing between the housing and the motor
  • Maximum temperature of the transported medium above 80°C
  • Ambient temperature range below -20°C and above +40°C
