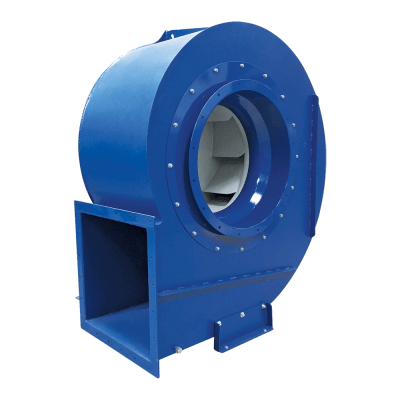

Centrifugal fan-BE

Application

Fans for the transport of process-specific media and ventilation applications. This fan type is used in the following areas, among others:

  • Sewage sludge drying
  • Industrial furnace construction
  • Thermal process technology
  • Surface technology
  • Ventilation technology
  • Environmental technology
  • Cleaning machines
  • Special machine construction
  • Power plant construction
  • Textile machinery
  • Etc…

Konstruktion

Direktgetriebener Industrie-Radialventilator. Gehäuse in verstärkter Stahlausführung. Laufrad mit Rückwärtsgekrümmten Schaufeln aus Stahl  Alle Oberflächen lackiert oder beschichtet in RAL 5010 / Korrosionsschutzklasse C3



Construction

  • IEC standard motor
  • Asynchronous, single-phase, 230V, 50Hz (up to 1.5 kW)
  • Asynchronous, three-phase, 230/400V, 50Hz (up to 3.0 kW)
  • Asynchronous, three-phase, 400/690V, 50Hz (from 4.0 kW)
  • Efficiency class IE3
  • Protection class IP55
  • Insulation class F
  • Designed for frequency converter operation
  • Motor ambient temperatures from -20°C to +40°C

ACCESSORIES

  • Compensators for suction and pressure side
  • Counter flanges for suction and pressure side
  • Additional counter base frame
  • Transition pieces for suction and pressure side
  • Rubber or earth vibration elements
  • Sound and heat insulation in various designs

Special designs

  • Any LG or RD figure
  • Painting in a color other than the standard one according to the RAL palette
  • Painting in a higher corrosivity class
  • Galvanized housing and impeller
  • Housing and impeller made of stainless steel 1.4301
  • Housing and impeller made of stainless steel 1.4404
  • For transporting a medium with a temperature below -20°C and above +80°C
  • For work in potentially explosive atmospheres in zone 1 or 21 or 2 or 22
  • With clutch drive
  • With belt drive
  • With thermal and acoustic insulation
  • With a motor for a voltage or frequency other than the standard
  • With a motor with a different IP protection class
  • With a motor with a different insulation class
  • With a motor equipped with sensors or additional cooling
  • Motor ambient temperature below -20°C and above +40°C
