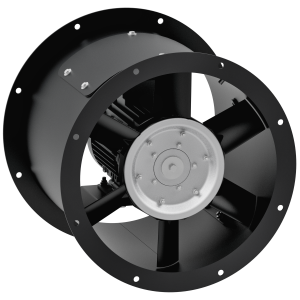

Axial fan-AFC

Application

Our AFW series fans are excellent for duct and channel ventilation where the fan is connected to the inlet and outlet side. This type of design can be adapted for almost any customized application and is characterized by high stability, which is why this axial fan is used in very many ventilation systems. The standard working range is from -15°C to +40°C in continuous operation. On request we can supply fans for an extended temperature range.

Construction

This type is used as a tube or duct fan. The sheet steel housing is powder coated as standard to protect it from environmental influences. On request, we can supply this fan in an alternative material or specially coated. The impeller is made of aluminum while the fan wheel is made of polyamide reinforced with fiberglass.

This fan is delivered in black (RAL 9005) as standard. We will be very pleased to accept your color request within the RAL color range. In addition, it is possible to supply any special colors after consultation.

Electric motor

We offer a wide range of different electric motors, all of which meet or exceed the current standards in terms of efficiency and effectiveness (ErP, CE). They are built according to IEC 60072 as well as IEC 60034 and IEC 60034 and have a CE mark. Standard design includes: Three-phase motor (asynchronous) 220-240 / 380-420V, 50 Hz frequency or single-phase motor 220-240V, 50Hz frequency with a capacitor, insulation class F, protection class IP55. On request, we can supply electric motors with a different frequency (e.g. 60Hz) or voltage, a higher protection class or adapted voltage regulation. Other accessories include frequency converters for infinitely variable speed control, bimetal sensors and posistor sensors.
